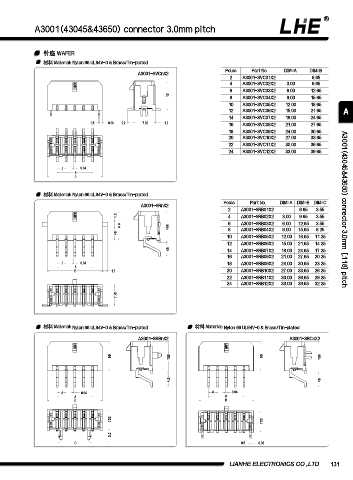

A3001(43045&43650) connector 3.0mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A3001-SVCnX2 Poles Part No. DIM=A DIM=B
2 A3001-SVC01X2 6.65
4 A3001-SVC02X2 3.00 9.65
6 A3001-SVC03X2 6.00 12.65
10 8 A3001-SVC04X2 9.00 15.65
10 A3001-SVC05X2 12.00 18.65
12 A3001-SVC06X2 15.00 21.65 A
14 A3001-SVC07X2 18.00 24.65
0.5 0.93 2.2 7.32 1.7 16 A3001-SVC08X2 21.00 27.65
18 A3001-SVC09X2 24.00 30.65
20 A3001-SVC10X2 27.00 33.65
22 A3001-SVC11X2 30.00 36.65
24 A3001-SVC12X2 33.00 39.65

3 0.64
A
B

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A3001-SRnX2 Poles Part No. DIM=A DIM=B DIM=C
2 A3001-SRB01X2 6.65 3.55 A3001(43045&43650) connector 3.0mm [.118] pitch
1.3 4 A3001-SRB02X2 3.00 9.65 3.55
6 A3001-SRB03X2 6.00 12.65 3.55
9.9 10.8
4.8 8 A3001-SRB04X2 9.00 15.65 8.25
10 A3001-SRB05X2 12.00 18.65 11.25
12 A3001-SRB06X2 15.00 21.65 14.25
4.6 14 A3001-SRB07X2 18.00 24.65 17.25
16 A3001-SRB08X2 21.00 27.65 20.25
3 0.64 18 A3001-SRB09X2 24.00 30.65 23.25
A
B 1.8 20 A3001-SRB10X2 27.00 33.65 26.25
22 A3001-SRB11X2 30.00 36.65 29.25
24 A3001-SRB12X2 33.00 39.65 32.25

7.42

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A3001-SRBnX2 A3001-SRCnX2

9.9 10.8 9.9 10.8

4.6 4.6
3 0.64 3 0.64
A A
B B

7.32 7.32

3.2
C 0.5 0.93
