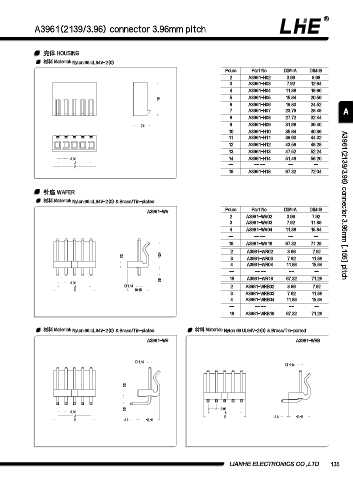

A3961(2139/3.96) connector 3.96mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-2(0)
Poles Part No. DIM=A DIM=B
2 A3961-H02 3.96 8.68
3 A3961-H03 7.92 12.64
4 A3961-H04 11.88 16.60
5 A3961-H05 15.84 20.56
16
6 A3961-H06 19.80 24.52
7 A3961-H07 23.76 28.48 A
8 A3961-H08 27.72 32.44
7.8 9 A3961-H09 31.68 36.40
10 A3961-H10 35.64 40.36
11 A3961-H11 39.60 44.32
12 A3961-H12 43.56 48.28
13 A3961-H13 47.52 52.24
3.96 14 A3961-H14 51.48 56.20
A
B -- -- -- -- --
18 A3961-H18 67.32 72.04

针座 WAFER
材料 Material: Nylon 66 UL94V-2(0) & Brass/Tin-plated A3961(2139/3.96) connector 3.96mm [.156] pitch
A3961-WV Poles Part No. DIM=A DIM=B
2 A3961-WV02 3.96 7.92
3 A3961-WV03 7.92 11.88
4 A3961-WV04 11.88 15.84
-- -- -- -- --
18 A3961-WV18 67.32 71.28
2 A3961-WR02 3.96 7.92
3.2 12.4 3 A3961-WR03 7.92 11.88
4 A3961-WR04 11.88 15.84
-- -- -- -- --
3.6 18 A3961-WR18 67.32 71.28
3.96
A  1.14 2 A3961-WRB02 3.96 7.92
B 10.15
3 A3961-WRB03 7.92 11.88
4 A3961-WRB04 11.88 15.84
-- -- -- -- --
18 A3961-WRB18 67.32 71.28

材料 Material: Nylon 66 UL94V-2(0) & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-2(0) & Brass/Tin-plated
A3961-WR A3961-WRB

 1.14
 1.14

3.2

3.5 3.96
3.96 A
A B 3.6 10.15
B 3.6 10.15
