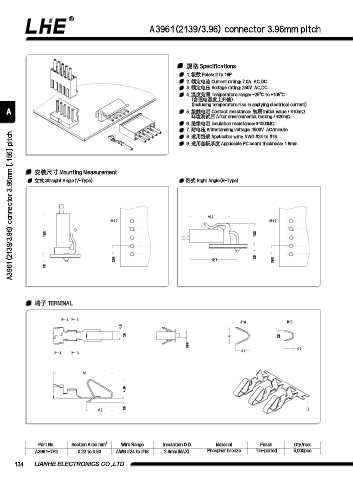

A3961(2139/3.96) connector 3.96mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 7.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
A3961(2139/3.96) connector 3.96mm [.156] pitch
8. 适⽤线规 Applicable wire: AWG #24 to #18
9. 适⽤基板厚度 Applicable PC board thickness: 1.6mm

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type) 卧式 Right Angle(R-Type)

19.2
1.7 1.7

19.2 10.2

3.6
3.96 22.7 3.96
3.6

端⼦ TERMINAL

A B
A-A B-B
1.9
2.9 4 2.5
0.95 2.2
3.2
A B

14

4.55

6.2 0.9

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A3961-TP2 0.22 to 0.83 AWG #24 to #18 2.8mm(MAX) Phosphor bronze Tin-plated 5,000pcs

134 LIANHE ELECTRONICS CO.,LTD.
