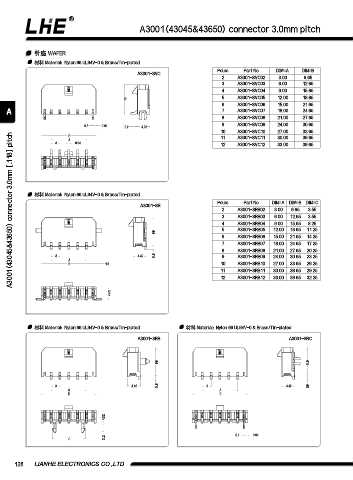

A3001(43045&43650) connector 3.0mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A3001-SVC Poles Part No. DIM=A DIM=B
2 A3001-SVC02 3.00 9.65
3 A3001-SVC03 6.00 12.65
4 A3001-SVC04 9.00 15.65
5 A3001-SVC05 12.00 18.65
10
6 A3001-SVC06 15.00 21.65
A 7 A3001-SVC07 18.00 24.65
8 A3001-SVC08 21.00 27.65
0.5 0.93 2.2 4.32 9 A3001-SVC09 24.00 30.65
10 A3001-SVC10 27.00 33.65
A3001(43045&43650) connector 3.0mm [.118] pitch
B
A 11 A3001-SVC11 30.00 36.65
3 0.64 12 A3001-SVC12 33.00 39.65

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A3001-SR Poles Part No. DIM=A DIM=B DIM=C
2 A3001-SRB02 3.00 9.65 3.55
3 A3001-SRB03 6.00 12.65 3.55
4 A3001-SRB04 9.00 15.65 8.25
5 A3001-SRB05 12.00 18.65 11.25
9.9
6 A3001-SRB06 15.00 21.65 14.25
7 A3001-SRB07 18.00 24.65 17.25
8 A3001-SRB08 21.00 27.65 20.25
3 4.42 0.9 9 A3001-SRB09 24.00 30.65 23.25
A
B 1.8 10 A3001-SRB10 27.00 33.65 26.25
11 A3001-SRB11 30.00 36.65 29.25
12 A3001-SRB12 33.00 39.65 32.25

4.42

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A3001-SRB A3001-SRC

9.9 9.9

3 4.42 0.9 3 4.42 0.9
A A
B B

4.32

0.5 0.93
C 3.2

128 LIANHE ELECTRONICS CO.,LTD.
