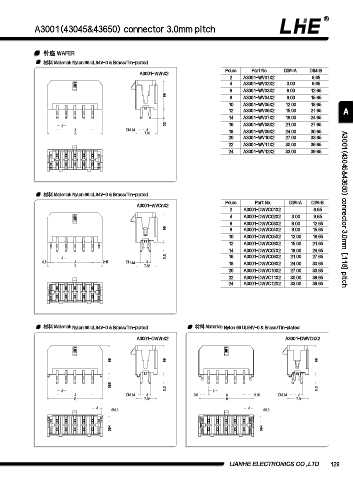

A3001(43045&43650) connector 3.0mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A3001-WVnX2 Poles Part No. DIM=A DIM=B
2 A3001-WV01X2 6.65
4 A3001-WV02X2 3.00 9.65
6 A3001-WV03X2 6.00 12.65
9.9
8 A3001-WV04X2 9.00 15.65
10 A3001-WV05X2 12.00 18.65
12 A3001-WV06X2 15.00 21.65 A
14 A3001-WV07X2 18.00 24.65
3.2 16 A3001-WV08X2 21.00 27.65
3
A  0.64 3
B 7.32 18 A3001-WV09X2 24.00 30.65
20 A3001-WV10X2 27.00 33.65
22 A3001-WV11X2 30.00 36.65
24 A3001-WV12X2 33.00 39.65

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A3001-WVCnX2 Poles Part No. DIM=A DIM=B
2 A3001-DWVC01X2 6.65 A3001(43045&43650) connector 3.0mm [.118] pitch
4 A3001-DWVC02X2 3.00 9.65
6 A3001-DWVC03X2 6.00 12.65
9.9
8 A3001-DWVC04X2 9.00 15.65
10 A3001-DWVC05X2 12.00 18.65
12 A3001-DWVC06X2 15.00 21.65
14 A3001-DWVC07X2 18.00 24.65
3.2 16 A3001-DWVC08X2 21.00 27.65
3
0.5 A 2.15  0.64 3
B 7.32 18 A3001-DWVC09X2 24.00 30.65
20 A3001-DWVC10X2 27.00 33.65
22 A3001-DWVC11X2 30.00 36.65
24 A3001-DWVC12X2 33.00 39.65

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A3001-DWVnX2 A3001-DWVCnX2

9.9 9.9 9.9

0.86
3 3.2 3 3.2
A  0.64 3 0.5 A 2.15  0.64 3
B 7.32 B 7.32
3 0.9 3 0.9

0.94 0.94
