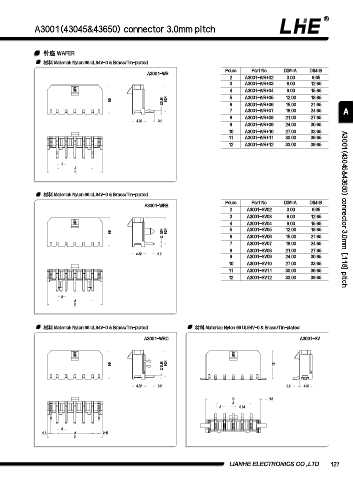

A3001(43045&43650) connector 3.0mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A3001-WR Poles Part No. DIM=A DIM=B
2 A3001-WR*02 3.00 9.65
3 A3001-WR*03 6.00 12.65
4 A3001-WR*04 9.00 15.65
9.9 0.64 9.24 5 A3001-WR*05 12.00 18.65
 6 A3001-WR*06 15.00 21.65
7 A3001-WR*07 18.00 24.65 A
8 A3001-WR*08 21.00 27.65
4.32 3.2
9 A3001-WR*09 24.00 30.65
10 A3001-WR*10 27.00 33.65
11 A3001-WR*11 30.00 36.65
12 A3001-WR*12 33.00 39.65

3
A
B

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A3001-WRB Poles Part No. DIM=A DIM=B
2 A3001-SV02 3.00 9.65 A3001(43045&43650) connector 3.0mm [.118] pitch
3 A3001-SV03 6.00 12.65
4 A3001-SV04 9.00 15.65
9.9 0.64 9.24 5 A3001-SV05 12.00 18.65
 6 A3001-SV06 15.00 21.65
7 A3001-SV07 18.00 24.65
8 A3001-SV08 21.00 27.65
4.32 3.2
9 A3001-SV09 24.00 30.65
10 A3001-SV10 27.00 33.65
11 A3001-SV11 30.00 36.65
12 A3001-SV12 33.00 39.65

3
A
B

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A3001-WRC A3001-SV

9.9 0.64 9.24 10


4.32 3.2 2.2 4.32

B 1.8
A
3 0.64

3
0.5 A 2.15
B

LIANHE ELECTRONICS CO.,LTD. 127
