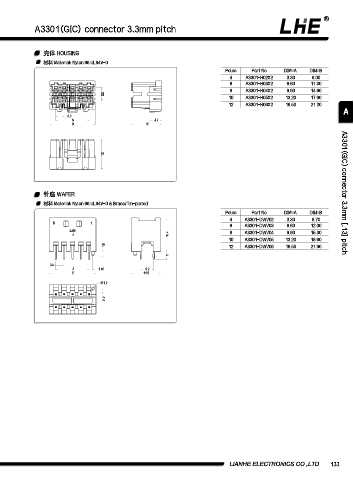

A3301(GIC) connector 3.3mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
4 A3301-H02X2 3.30 8.00
6 A3301-H03X2 6.60 11.30
8 A3301-H04X2 9.90 14.60
5.2
10 A3301-H05X2 13.20 17.90
12 A3301-H06X2 16.50 21.20
A
3.3
A 4.7
B 12

12

针座 WAFER A3301(GIC) connector 3.3mm [.13] pitch
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
4 A3301-DWV02 3.30 8.70
6 A3301-DWV03 6.60 12.00
8 A3301-DWV04 9.90 15.30
13.4
10 A3301-DWV05 13.20 18.60
1.5 12 A3301-DWV06 16.50 21.90

3
3.3
A 1.45 5.2
B 11.5
1.2

2.2

LIANHE ELECTRONICS CO.,LTD. 133
