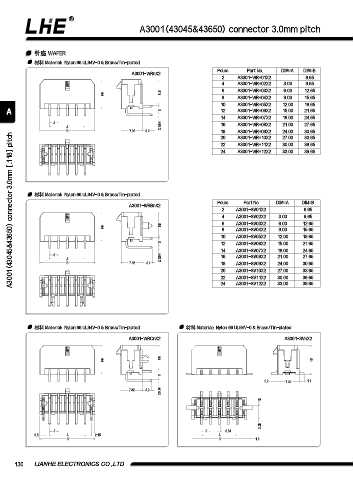

A3001(43045&43650) connector 3.0mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A3001-WRnX2 Poles Part No. DIM=A DIM=B
2 A3001-WR*01X2 6.65
4 A3001-WR*02X2 3.00 9.65
9.9 8.6 6 A3001-WR*03X2 6.00 12.65
8 A3001-WR*04X2 9.00 15.65
10 A3001-WR*05X2 12.00 18.65
A 3 12 A3001-WR*06X2 15.00 21.65
14 A3001-WR*07X2 18.00 24.65
3
A 0.64 16 A3001-WR*08X2 21.00 27.65
B 7.32 3.2  18 A3001-WR*09X2 24.00 30.65
A3001(43045&43650) connector 3.0mm [.118] pitch
20 A3001-WR*10X2 27.00 33.65
22 A3001-WR*11X2 30.00 36.65
24 A3001-WR*12X2 33.00 39.65

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A3001-WRBnX2 Poles Part No. DIM=A DIM=B
2 A3001-SV01X2 6.65
4 A3001-SV02X2 3.00 9.65
9.9 8.6 6 A3001-SV03X2 6.00 12.65
8 A3001-SV04X2 9.00 15.65
10 A3001-SV05X2 12.00 18.65
12 A3001-SV06X2 15.00 21.65
3
14 A3001-SV07X2 18.00 24.65
3 0.64
A 16 A3001-SV08X2 21.00 27.65
B 7.32 3.2  18 A3001-SV09X2 24.00 30.65
20 A3001-SV10X2 27.00 33.65
22 A3001-SV11X2 30.00 36.65
24 A3001-SV12X2 33.00 39.65

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A3001-WRCnX2 A3001-SVnX2

9.9 8.6 10

3
2.2 7.32 1.7
0.64
7.32 3.2

1.3

3.26
3 3 0.64
0.5 A 2.15 A
B B 1.8

130 LIANHE ELECTRONICS CO.,LTD.
