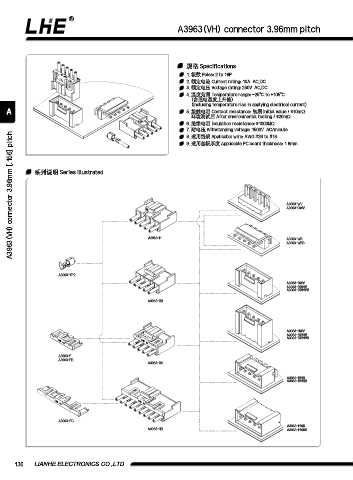

A3963(VH) connector 3.96mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 10A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
A3963(VH) connector 3.96mm [.156] pitch
8. 适⽤线规 Applicable wire: AWG #26 to #18
9. 适⽤基板厚度 Applicable PC board thickness: 1.6mm

系列说明 Series illustrated

A3963-WV
A3963-DWV

A3963-H A3963-WR
A3963-WRB

A3963-TP2
A3963-BWV
A3963-DBWV
A3963-DBWVB
A3963-HB

A3963-HWV
A3963-DHWV
A3963-DHWVB

A3963-F
A3963-FB
A3963-HC

A3963-BWR
A3963-BWRB

A3963-FC
A3963-HWR
A3963-HD A3963-HWRB
