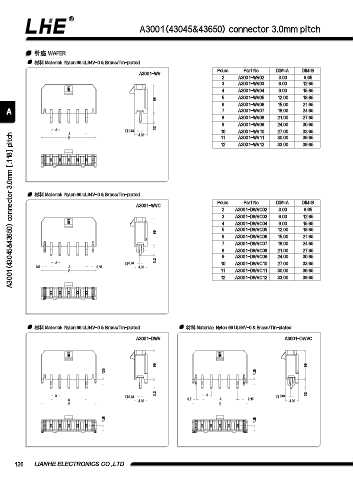

A3001(43045&43650) connector 3.0mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A3001-WV Poles Part No. DIM=A DIM=B
2 A3001-WV02 3.00 9.65
3 A3001-WV03 6.00 12.65
4 A3001-WV04 9.00 15.65
9.9 5 A3001-WV05 12.00 18.65
6 A3001-WV06 15.00 21.65
A 7 A3001-WV07 18.00 24.65
8 A3001-WV08 21.00 27.65
9 A3001-WV09 24.00 30.65
3.2
3  0.64 10 A3001-WV10 27.00 33.65
A3001(43045&43650) connector 3.0mm [.118] pitch
A 4.32
B 11 A3001-WV11 30.00 36.65
12 A3001-WV12 33.00 39.65

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A3001-WVC Poles Part No. DIM=A DIM=B
2 A3001-DWVC02 3.00 9.65
3 A3001-DWVC03 6.00 12.65
4 A3001-DWVC04 9.00 15.65
5 A3001-DWVC05 12.00 18.65
9.9
6 A3001-DWVC06 15.00 21.65
7 A3001-DWVC07 18.00 24.65
8 A3001-DWVC08 21.00 27.65
9 A3001-DWVC09 24.00 30.65
3.2
3  0.64
0.5 A 2.15 4.32 10 A3001-DWVC10 27.00 33.65
B 11 A3001-DWVC11 30.00 36.65
12 A3001-DWVC12 33.00 39.65

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A3001-DWV A3001-DWVC

9.9 9.9
1.35 1.35

3.2 3.2
3  0.64 3  0.64
A 4.32 0.5 A 2.15 4.32
B B

1.96 1.96

126 LIANHE ELECTRONICS CO.,LTD.
