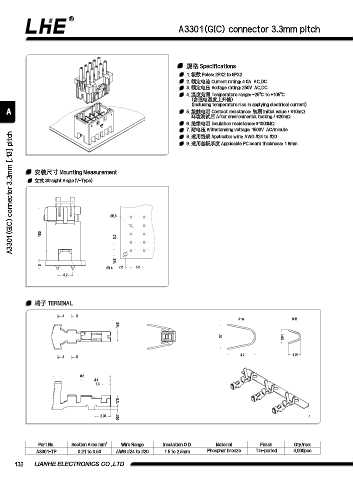

A3301(GIC) connector 3.3mm pitch

规格 Specifications
1. 极数 Poles: 2PX2 to 6PX2
2. 额定电流 Current rating: 4.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
A3301(GIC) connector 3.3mm [.13] pitch
8. 适⽤线规 Applicable wire: AWG #24 to #20
9. 适⽤基板厚度 Applicable PC board thickness: 1.6mm

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type)

0.8

18.3
3.3

1.45
3
1.4 2.2 5.2
5.2

端⼦ TERMINAL

A B
A-A B-B
1.45
3.7 2.01

4.2 1.79
A B

8.6
4.4
1.3

1.75

2.35 0.37

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A3301-TP 0.21 to 0.53 AWG #24 to #20 1.5 to 2.5mm Phosphor bronze Tin-plated 4,000pcs
