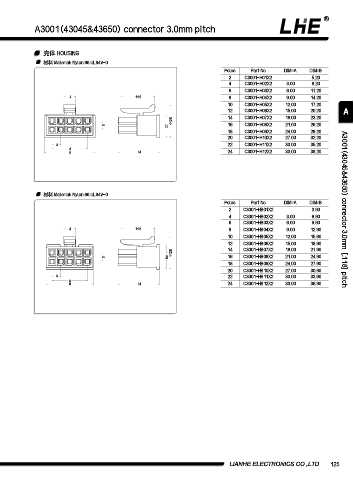

A3001(43045&43650) connector 3.0mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C3001-H01X2 5.20
4 C3001-H02X2 3.00 8.20
6 C3001-H03X2 6.00 11.20
4 11.5 8 C3001-H04X2 9.00 14.20
10 C3001-H05X2 12.00 17.20
12 C3001-H06X2 15.00 20.20 A
14 C3001-H07X2 18.00 23.20
11.25
7.7
3 16 C3001-H08X2 21.00 26.20
18 C3001-H09X2 24.00 29.20
20 C3001-H10X2 27.00 32.20
3 22 C3001-H11X2 30.00 35.20
A
B 14 24 C3001-H12X2 33.00 38.20

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C3001-HB01X2 3.90 A3001(43045&43650) connector 3.0mm [.118] pitch
4 C3001-HB02X2 3.00 6.90
6 C3001-HB03X2 6.00 9.90
4 11.5 8 C3001-HB04X2 9.00 12.90
10 C3001-HB05X2 12.00 15.90
12 C3001-HB06X2 15.00 18.90
11.25 14 C3001-HB07X2 18.00 21.90
3 8.4 16 C3001-HB08X2 21.00 24.90
18 C3001-HB09X2 24.00 27.90
20 C3001-HB10X2 27.00 30.90
3 22 C3001-HB11X2 30.00 33.90
A
B 14 24 C3001-HB12X2 33.00 36.90

LIANHE ELECTRONICS CO.,LTD. 125
