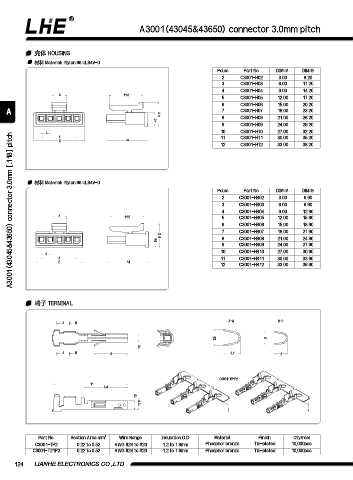

A3001(43045&43650) connector 3.0mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C3001-H02 3.00 8.20
3 C3001-H03 6.00 11.20
4 C3001-H04 9.00 14.20
5 11.5
5 C3001-H05 12.00 17.20
6 C3001-H06 15.00 20.20
A 8.2 7 C3001-H07 18.00 23.20
4.7 8 C3001-H08 21.00 26.20
9 C3001-H09 24.00 29.20
10 C3001-H10 27.00 32.20
3
A3001(43045&43650) connector 3.0mm [.118] pitch
A 11 C3001-H11 30.00 35.20
B 14
12 C3001-H12 33.00 38.20

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C3001-HB02 3.00 6.90
3 C3001-HB03 6.00 9.90
4 C3001-HB04 9.00 12.90
5 11.5
5 C3001-HB05 12.00 15.90
6 C3001-HB06 15.00 18.90
7 C3001-HB07 18.00 21.90
8.2
5.4 8 C3001-HB08 21.00 24.90
9 C3001-HB09 24.00 27.90
10 C3001-HB10 27.00 30.90
3
A 11 C3001-HB11 30.00 33.90
B 14
12 C3001-HB12 33.00 36.90

端⼦ TERMINAL

A-A B-B
A B

2.4 2
1.2
A B 5 2.5 2

C3001-T21P2
11
6.4
1.3
1.75

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C3001-TP2 0.22 to 0.52 AWG #24 to #20 1.2 to 1.9mm Phosphor bronze Tin-plated 10,000pcs
C3001-T21P2 0.22 to 0.52 AWG #24 to #20 1.2 to 1.9mm Phosphor bronze Tin-plated 10,000pcs
