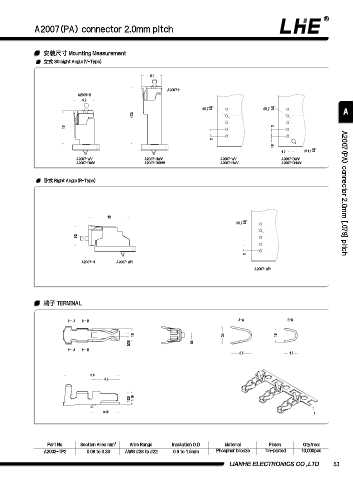

A2007(PA) connector 2.0mm pitch

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type)

5.9
A2007-H
A2007-H
6.2
+ 0.1 + 0.1
 0.7 0 -  0.7 0
-
17.3 A
10 2

2
1.5
+
1.7  1.1 0 0.1
-
A2007-WV A2007-HWV A2007-WV A2007-DWV
A2007-DWV A2007-DHWV A2007-HWV A2007-DHWV

卧式 Right Angle(R-Type) A2007(PA) connector 2.0mm [.079] pitch

12
+ 0.1
 0.7 0
-
6.2

2
A2007-H A2007-WR
A2007-WR

端⼦ TERMINAL

A B A-A B-B

1.5 2.1 1.6
0.25 0.6
A B
2.5 1.6

6.5
3.2

1.25 1.55

3.35

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2002-TP2 0.08 to 0.33 AWG #28 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 10,000pcs

LIANHE ELECTRONICS CO.,LTD. 53
