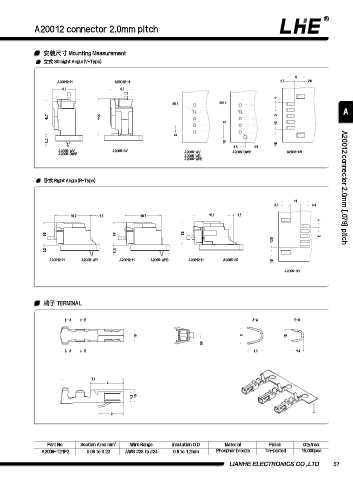

A20012 connector 2.0mm pitch

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type)

6
A20012-H A20012-H 2.5 2.6
6.8 6.8
1
0.8 0.8
A
10.7 11.1 2
1.3
2
2
3.2 1.5 1.5
1.5 1
A2005-WV A2005-SV A2005-WV A2005-DWV A2005-SV
A2005-DWV A2005-WR
A2005-WRB

卧式 Right Angle(R-Type) A20012 connector 2.0mm [.079] pitch

11
3.6 3.4
10.7 1.5 10.7 10.6 1.5
1

6.8 6.8 6.8 2
1.15
3.2 3.2
A20012-H A2005-WR A20012-H A2005-WRB A20012-H A2005-SR 1.5

A2005-SR

端⼦ TERMINAL

A B A-A B-B

1.5 2 1.5
0.6
A B 1.9 1.4

7.4
4

1.3 1.5

3

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2006-T21P2 0.08 to 0.22 AWG #28 to #24 0.6 to 1.2mm Phosphor bronze Tin-plated 15,000pcs
