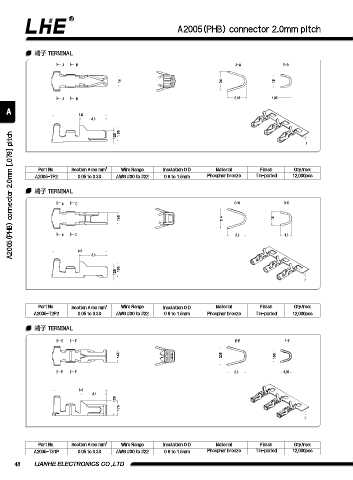

A2005(PHB) connector 2.0mm pitch

端⼦ TERMINAL
A B A-A B-B

1.4 2.4 1.6

A B 2.15 1.35

A 6.5
3.3

A2005(PHB) connector 2.0mm [.079] pitch
1.25 1.85

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2005-TP2 0.05 to 0.33 AWG #30 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 12,000pcs

端⼦ TERMINAL
C D C-C D-D

1.45 2.4 1.6

C D 2.2 1.3

6.5
3.3

1.25 1.85

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2005-T2P2 0.05 to 0.33 AWG #30 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 12,000pcs
端⼦ TERMINAL

E F E-E F-F

1.45 2.25 1.55

E F 2.3 1.35

6.3
3.1
1.25
1.75

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2005-T31P 0.05 to 0.33 AWG #30 to #22 0.9 to 1.5mm Phosphor bronze Tin-plated 12,000pcs

48 LIANHE ELECTRONICS CO.,LTD.
