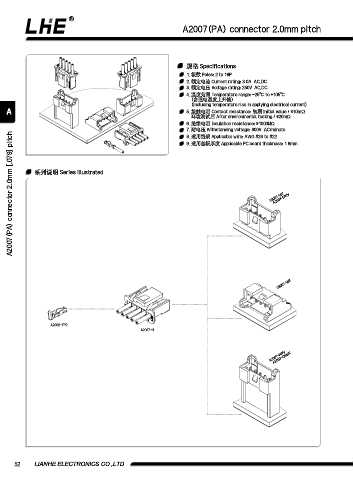

A2007(PA) connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 800V AC/minute
A2007(PA) connector 2.0mm [.079] pitch
8. 适⽤线规 Applicable wire: AWG #28 to #22
9. 适⽤基板厚度 Applicable PC board thickness: 1.6mm

系列说明 Series illustrated

A2007-WV
A2007-DWV

A2007-WR

A2002-TP2
A2007-H

A2007-HWV
A2007-DHWV
