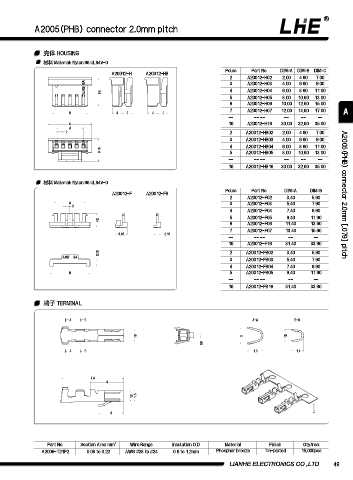

A2005(PHB) connector 2.0mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

A20012-H A20012-HB Poles Part No. DIM=A DIM=B DIM=C
2 A20012-H02 2.00 4.60 7.00
3 A20012-H03 4.00 6.60 9.00
8.4 4 A20012-H04 6.00 8.60 11.00
5 A20012-H05 8.00 10.60 13.00
6 A20012-H06 10.00 12.60 15.00
7 A20012-H07 12.00 14.60 17.00
B 3 3 3 3 A
-- -- -- -- -- --
C 16 A20012-H16 30.00 32.60 35.00
A
2 2 A20012-HB02 2.00 4.60 7.00
3 A20012-HB03 4.00 6.60 9.00
4 A20012-HB04 6.00 8.60 11.00
6.75 5 A20012-HB05 8.00 10.60 13.00
-- -- -- -- -- --
16 A20012-HB16 30.00 32.60 35.00

材料 Material: Nylon 66 UL94V-0
A20012-F A20012-FB Poles Part No. DIM=A DIM=B A2005(PHB) connector 2.0mm [.079] pitch
2 A20012-F02 3.40 5.90
A
2 3 A20012-F03 5.40 7.90
4 A20012-F04 7.40 9.90
5 A20012-F05 9.40 11.90
4.2
6 A20012-F06 11.40 13.90
7 A20012-F07 13.40 15.90
3.45 2.15
-- -- -- -- --
16 A20012-F16 31.40 33.90
2.15 2 A20012-FB02 3.40 5.90
3 A20012-FB03 5.40 7.90
4 A20012-FB04 7.40 9.90
B 5 A20012-FB05 9.40 11.90
-- -- -- -- --
16 A20012-FB16 31.40 33.90

端⼦ TERMINAL

A B A-A B-B

1.5 2 1.5
0.6
A B 1.9 1.4

7.4
4

1.3 1.5

3

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2006-T21P2 0.08 to 0.22 AWG #28 to #24 0.6 to 1.2mm Phosphor bronze Tin-plated 15,000pcs

LIANHE ELECTRONICS CO.,LTD. 49
