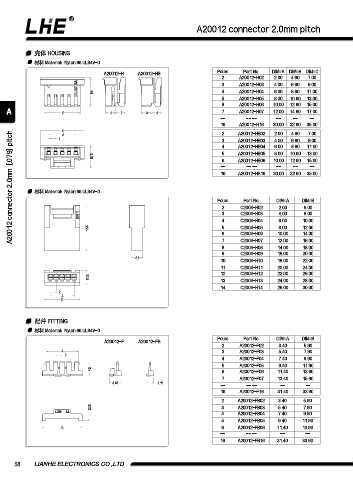

A20012 connector 2.0mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

A20012-H A20012-HB Poles Part No. DIM=A DIM=B DIM=C
2 A20012-H02 2.00 4.60 7.00
3 A20012-H03 4.00 6.60 9.00
8.4 4 A20012-H04 6.00 8.60 11.00
5 A20012-H05 8.00 10.60 13.00
6 A20012-H06 10.00 12.60 15.00
A B 3 3 3 3 7 A20012-H07 12.00 14.60 17.00
-- -- -- -- -- --
16 A20012-H16 30.00 32.60 35.00
C 2 A20012-HB02 2.00 4.60 7.00
A20012 connector 2.0mm [.079] pitch
A
2 3 A20012-HB03 4.00 6.60 9.00
4 A20012-HB04 6.00 8.60 11.00
5 A20012-HB05 8.00 10.60 13.00
6.75 6 A20012-HB06 10.00 12.60 15.00
-- -- -- -- -- --
16 A20012-HB16 30.00 32.60 35.00

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C2004-H02 2.00 6.00
3 C2004-H03 4.00 8.00
4 C2004-H04 6.00 10.00
15.5 5 C2004-H05 8.00 12.00
6 C2004-H06 10.00 14.00
7 C2004-H07 12.00 16.00
8 C2004-H08 14.00 18.00
9 C2004-H09 16.00 20.00
3.6
10 C2004-H10 18.00 22.00
11 C2004-H11 20.00 24.00
12 C2004-H12 22.00 26.00
5.12 13 C2004-H13 24.00 28.00
14 C2004-H14 26.00 30.00
2
A
B

配件 FITTING
材料 Material: Nylon 66 UL94V-0
A20012-F A20012-FB Poles Part No. DIM=A DIM=B
2 A20012-F02 3.40 5.90
A 3 A20012-F03 5.40 7.90
2
4 A20012-F04 7.40 9.90
5 A20012-F05 9.40 11.90
4.2
6 A20012-F06 11.40 13.90
7 A20012-F07 13.40 15.90
3.45 2.15
-- -- -- -- --
16 A20012-F16 31.40 33.90
2 A20012-FB02 3.40 5.90
2.15 3 A20012-FB03 5.40 7.90
4 A20012-FB04 7.40 9.90
5 A20012-FB05 9.40 11.90
B 6 A20012-FB06 11.40 13.90
-- -- -- -- --
16 A20012-FB16 31.40 33.90

58 LIANHE ELECTRONICS CO.,LTD.
