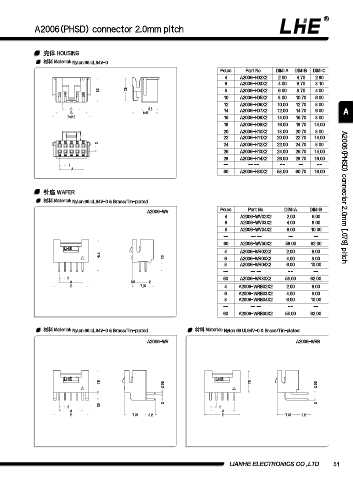

A2006(PHSD) connector 2.0mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B DIM=C
4 A2006-H02X2 2.00 4.70 2.80
6 A2006-H03X2 4.00 6.70 3.10
8.3 7.8 8 A2006-H04X2 6.00 8.70 4.00
10 A2006-H05X2 8.00 10.70 6.00
12 A2006-H06X2 10.00 12.70 8.00
C 5.5
B 8.65 14 A2006-H07X2 12.00 14.70 6.00 A
B+2.2 16 A2006-H08X2 14.00 16.70 8.00
18 A2006-H09X2 16.00 18.70 14.00
20 A2006-H10X2 18.00 20.70 8.00
22 A2006-H11X2 20.00 22.70 14.00
2
24 A2006-H12X2 22.00 24.70 8.00
26 A2006-H13X2 24.00 26.70 14.00
28 A2006-H14X2 26.00 28.70 16.00
2 -- -- -- -- -- --
A
60 A2006-H30X2 58.00 60.70 16.00

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated A2006(PHSD) connector 2.0mm [.079] pitch
A2006-WV Poles Part No. DIM=A DIM=B
4 A2006-WV02X2 2.00 6.00
6 A2006-WV03X2 4.00 8.00
8 A2006-WV04X2 6.00 10.00
-- -- -- -- --
60 A2006-WV30X2 58.00 62.00
4 A2006-WR02X2 2.00 6.00
10.8 3.2 6 A2006-WR03X2 4.00 8.00
8 A2006-WR04X2 6.00 10.00
-- -- -- -- --
2 60 A2006-WR30X2 58.00 62.00
A 0.5 2
B 7.25 4 A2006-WRB02X2 2.00 6.00
6 A2006-WRB03X2 4.00 8.00
8 A2006-WRB04X2 6.00 10.00
-- -- -- -- --
60 A2006-WRB30X2 58.00 62.00

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A2006-WR A2006-WRB

7.6 0.5 7.6 0.5
 

2.5 2 2
2 2
A A
B 7.25 3.2 B 7.25 3.2
