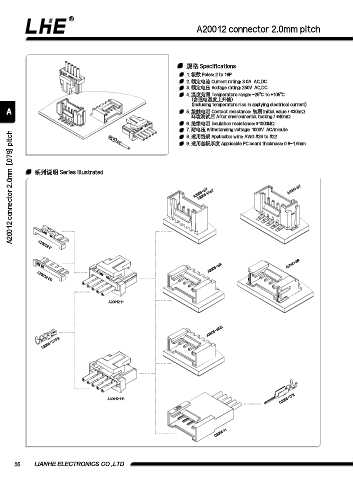

Page 74 - 浙江联和电子有限公司目录 2025-04-03

®
A20012 connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 16P
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤30mΩ
环境测试后 After environmental testing / ≤40mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
A20012 connector 2.0mm [.079] pitch
8. 适⽤线规 Applicable wire: AWG #28 to #22
9. 适⽤基板厚度 Applicable PC board thickness: 0.8~1.6mm

系列说明 Series illustrated

A2005-WV A2005-SV
A2005-DWV

A20012-F

A2005-WR A2005-SR

A20012-FB

A20012-H

A2005-WRB

A2006-T21P2

C2004-TP2
A20012-HB

C2004-H

56 LIANHE ELECTRONICS CO.,LTD.
