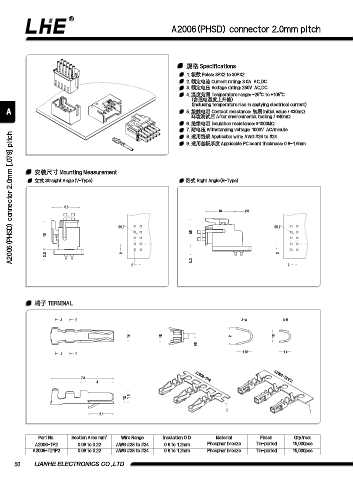

A2006(PHSD) connector 2.0mm pitch

规格 Specifications
1. 极数 Poles: 3PX2 to 30PX2
2. 额定电流 Current rating: 3.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤30mΩ
环境测试后 After environmental testing / ≤40mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1000V AC/minute
A2006(PHSD) connector 2.0mm [.079] pitch
8. 适⽤线规 Applicable wire: AWG #28 to #24
9. 适⽤基板厚度 Applicable PC board thickness: 0.8~1.6mm

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type) 卧式 Right Angle(R-Type)

9.5
10 2.5

0.7 0.7
9.5
10

3.2 2 2
3.2
2 2

端⼦ TERMINAL

A B A-A B-B

1.4 1.5 2 1.5
0.6
1.85 1.4
A B

7.3 A2006-TP2 A2006-T21P2
4

1.2 1.5

3.1

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A2006-TP2 0.08 to 0.22 AWG #28 to #24 0.6 to 1.2mm Phosphor bronze Tin-plated 15,000pcs
A2006-T21P2 0.08 to 0.22 AWG #28 to #24 0.6 to 1.2mm Phosphor bronze Tin-plated 15,000pcs
