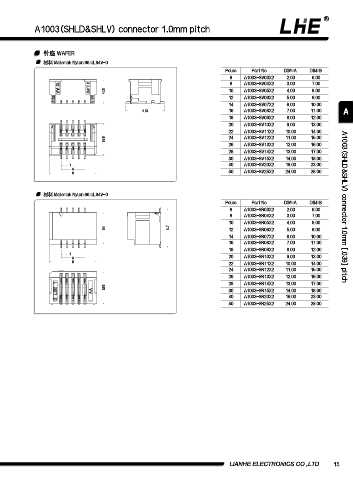

A1003(SHLD&SHLV) connector 1.0mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
6 A1003-SV03X2 2.00 6.00
8 A1003-SV04X2 3.00 7.00
4.15 10 A1003-SV05X2 4.00 8.00
12 A1003-SV06X2 5.00 9.00
14 A1003-SV07X2 6.00 10.00
6.54 16 A1003-SV08X2 7.00 11.00 A
18 A1003-SV09X2 8.00 12.00
20 A1003-SV10X2 9.00 13.00
22 A1003-SV11X2 10.00 14.00
5.46 24 A1003-SV12X2 11.00 15.00
26 A1003-SV13X2 12.00 16.00
28 A1003-SV14X2 13.00 17.00
30 A1003-SV15X2 14.00 18.00
1 40 A1003-SV20X2 19.00 23.00
A
B 50 A1003-SV25X2 24.00 28.00

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
6 A1003-SR03X2 2.00 6.00 A1003(SHLD&SHLV) connector 1.0mm [.039] pitch
8 A1003-SR04X2 3.00 7.00
10 A1003-SR05X2 4.00 8.00
5.4 6.7 12 A1003-SR06X2 5.00 9.00
14 A1003-SR07X2 6.00 10.00
16 A1003-SR08X2 7.00 11.00
18 A1003-SR09X2 8.00 12.00
1
A 20 A1003-SR10X2 9.00 13.00
B 22 A1003-SR11X2 10.00 14.00
24 A1003-SR12X2 11.00 15.00
26 A1003-SR13X2 12.00 16.00
28 A1003-SR14X2 13.00 17.00
5.65 30 A1003-SR15X2 14.00 18.00
40 A1003-SR20X2 19.00 23.00
50 A1003-SR25X2 24.00 28.00
