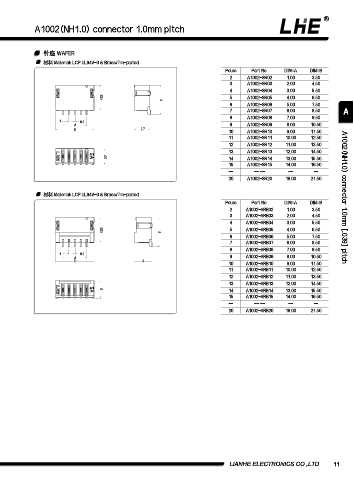

A1002(NH1.0) connector 1.0mm pitch

针座 WAFER
材料 Material: LCP UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A1002-SR02 1.00 3.50
3 A1002-SR03 2.00 4.50
4 A1002-SR04 3.00 5.50
4.25 5 5 A1002-SR05 4.00 6.50
6 A1002-SR06 5.00 7.50
7 A1002-SR07 6.00 8.50 A
8 A1002-SR08 7.00 9.50
1 0.2
A 9 A1002-SR09 8.00 10.50
B 2.7
10 A1002-SR10 9.00 11.50
11 A1002-SR11 10.00 12.50
12 A1002-SR12 11.00 13.50
13 A1002-SR13 12.00 14.50
2.7 14 A1002-SR14 13.00 15.50
15 A1002-SR15 14.00 16.50
-- -- -- -- --
20 A1002-SR20 19.00 21.50

材料 Material: LCP UL94V-0 & Brass/Tin-plated A1002(NH1.0) connector 1.0mm [.039] pitch
Poles Part No. DIM=A DIM=B
2 A1002-SRB02 1.00 3.50
3 A1002-SRB03 2.00 4.50
4 A1002-SRB04 3.00 5.50
4.25 5 5 A1002-SRB05 4.00 6.50
6 A1002-SRB06 5.00 7.50
7 A1002-SRB07 6.00 8.50
8 A1002-SRB08 7.00 9.50
1 0.2
A 9 A1002-SRB09 8.00 10.50
B 3
10 A1002-SRB10 9.00 11.50
11 A1002-SRB11 10.00 12.50
12 A1002-SRB12 11.00 13.50
13 A1002-SRB13 12.00 14.50
14 A1002-SRB14 13.00 15.50
3
15 A1002-SRB15 14.00 16.50
-- -- -- -- --
20 A1002-SRB20 19.00 21.50

LIANHE ELECTRONICS CO.,LTD. 11
