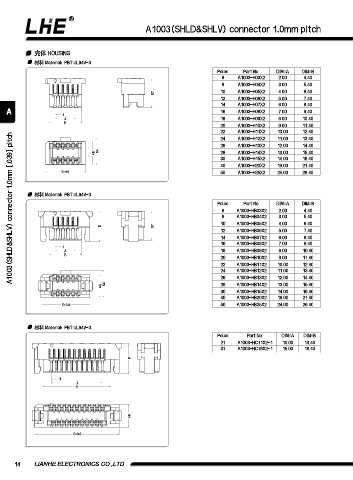

A1003(SHLD&SHLV) connector 1.0mm pitch

壳体 HOUSING
材料 Material: PBT UL94V-0
Poles Part No. DIM=A DIM=B
6 A1003-H03X2 2.00 4.40
8 A1003-H04X2 3.00 5.40
10 A1003-H05X2 4.00 6.40
5.7
12 A1003-H06X2 5.00 7.40
14 A1003-H07X2 6.00 8.40
A 1 16 A1003-H08X2 7.00 9.40
A 18 A1003-H09X2 8.00 10.40
B
20 A1003-H10X2 9.00 11.40
22 A1003-H11X2 10.00 12.40
A1003(SHLD&SHLV) connector 1.0mm [.039] pitch
24 A1003-H12X2 11.00 13.40
26 A1003-H13X2 12.00 14.40
4.6 5.4 28 A1003-H14X2 13.00 15.40
30 A1003-H15X2 14.00 16.40
40 A1003-H20X2 19.00 21.40
B+1.6 50 A1003-H25X2 24.00 26.40

材料 Material: PBT UL94V-0
Poles Part No. DIM=A DIM=B
6 A1003-HB03X2 2.00 4.40
8 A1003-HB04X2 3.00 5.40
10 A1003-HB05X2 4.00 6.40
5.7
6
12 A1003-HB06X2 5.00 7.40
14 A1003-HB07X2 6.00 8.40
16 A1003-HB08X2 7.00 9.40
1
A 18 A1003-HB09X2 8.00 10.40
B
20 A1003-HB10X2 9.00 11.40
22 A1003-HB11X2 10.00 12.40
24 A1003-HB12X2 11.00 13.40
26 A1003-HB13X2 12.00 14.40
5.4 28 A1003-HB14X2 13.00 15.40
4.6
30 A1003-HB15X2 14.00 16.40
40 A1003-HB20X2 19.00 21.40
B+3.3 50 A1003-HB25X2 24.00 26.40

材料 Material: PBT UL94V-0
Poles Part No. DIM=A DIM=B
21 A1003-HC11X2-1 10.00 13.40
31 A1003-HC16X2-1 15.00 18.40
6

1
A
B

4.6

B+3.3
