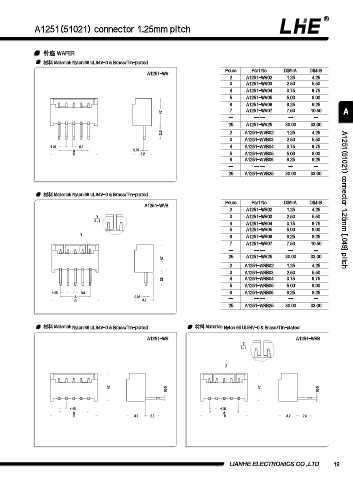

A1251(51021) connector 1.25mm pitch

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A1251-WV Poles Part No. DIM=A DIM=B
2 A1251-WV02 1.25 4.25
3 A1251-WV03 2.50 5.50
4 A1251-WV04 3.75 6.75
5 A1251-WV05 5.00 8.00
6 A1251-WV06 6.25 9.25
4.7 7 A1251-WV07 7.50 10.50 A
-- -- -- -- --
25 A1251-WV25 30.00 33.00
2.3 2 A1251-WVB02 1.25 4.25
3 A1251-WVB03 2.50 5.50
1.25 0.3 4 A1251-WVB04 3.75 6.75
A 0.35
B 3.2 5 A1251-WVB05 5.00 8.00
6 A1251-WVB06 6.25 9.25
-- -- -- -- --
25 A1251-WVB25 30.00 33.00

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated

A1251-WVB Poles Part No. DIM=A DIM=B A1251(51021) connector 1.25mm [.049] pitch
2 A1251-WR02 1.25 4.25
Y 3 A1251-WR03 2.50 5.50
6 : 1
4 A1251-WR04 3.75 6.75
5 A1251-WR05 5.00 8.00
Y
6 A1251-WR06 6.25 9.25
7 A1251-WR07 7.50 10.50
-- -- -- -- --
4.7 25 A1251-WR25 30.00 33.00
2 A1251-WRB02 1.25 4.25
3 A1251-WRB03 2.50 5.50
2.3 4 A1251-WRB04 3.75 6.75
5 A1251-WRB05 5.00 8.00
1.25 0.3 6 A1251-WRB06 6.25 9.25
A 0.35
B 3.2 -- -- -- -- --
25 A1251-WRB25 30.00 33.00

材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A1251-WR A1251-WRB
Z
6 : 1

Z

4.7 4.7
0.35 0.35

1.25 1.25
A A
B 3.2 2.3 B 3.2 2.3

LIANHE ELECTRONICS CO.,LTD. 19
