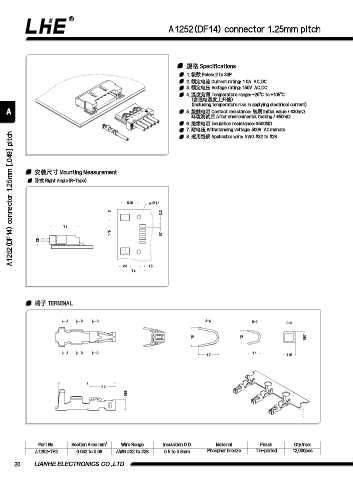

A1252(DF14) connector 1.25mm pitch

规格 Specifications
1. 极数 Poles: 2 to 30P
2. 额定电流 Current rating: 1.0A AC,DC
3. 额定电压 Voltage rating: 150V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤30mΩ
环境测试后 After environmental testing / ≤50mΩ
6. 绝缘电阻 Insulation resistance: ≥500MΩ
7. 耐电压 Withstanding voltage: 500V AC/minute
A1252(DF14) connector 1.25mm [.049] pitch
8. 适⽤线规 Applicable wire: AWG #32 to #28

安装尺⼨ Mounting Measurement
卧式 Right Angle(R-Type)

5.35 2-1.1
2 2.3

7.4
1.15 0.7
2.6

2.6 1.8
7.4

端⼦ TERMINAL

A B C A-A B-B C-C

1.6 1.2 0.97

A B C 1.7 1.1 1.05

5
2.2
0.88

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A1252-TP2 0.032 to 0.08 AWG #32 to #28 0.5 to 0.8mm Phosphor bronze Tin-plated 12,000pcs

20 LIANHE ELECTRONICS CO.,LTD.
