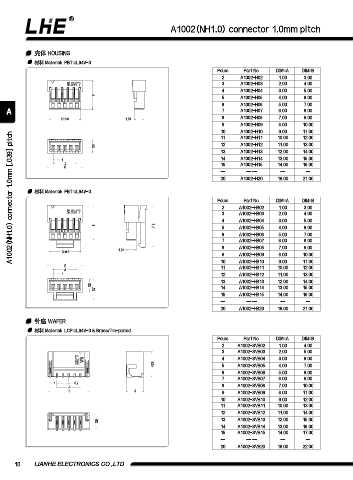

A1002(NH1.0) connector 1.0mm pitch

壳体 HOUSING
材料 Material: PBT UL94V-0
Poles Part No. DIM=A DIM=B
2 A1002-H02 1.00 3.00
3 A1002-H03 2.00 4.00
4 A1002-H04 3.00 5.00
5
5 A1002-H05 4.00 6.00
6 A1002-H06 5.00 7.00
A 7 A1002-H07 6.00 8.00
8 A1002-H08 7.00 9.00
B-0.6 1.68
9 A1002-H09 8.00 10.00
10 A1002-H10 9.00 11.00
A1002(NH1.0) connector 1.0mm [.039] pitch
11 A1002-H11 10.00 12.00
2.3 12 A1002-H12 11.00 13.00
13 A1002-H13 12.00 14.00
14 A1002-H14 13.00 15.00
1
A 15 A1002-H15 14.00 16.00
B
-- -- -- -- --
20 A1002-H20 19.00 21.00
材料 Material: PBT UL94V-0
Poles Part No. DIM=A DIM=B
2 A1002-HB02 1.00 3.00
3 A1002-HB03 2.00 4.00
4 A1002-HB04 3.00 5.00
7.2 5 A1002-HB05 4.00 6.00
6
6 A1002-HB06 5.00 7.00
7 A1002-HB07 6.00 8.00
8 A1002-HB08 7.00 9.00
1.68
B-0.6
9 A1002-HB09 8.00 10.00
10 A1002-HB10 9.00 11.00
B
A 11 A1002-HB11 10.00 12.00
1 12 A1002-HB12 11.00 13.00
13 A1002-HB13 12.00 14.00
2.3
3.7 14 A1002-HB14 13.00 15.00
15 A1002-HB15 14.00 16.00
-- -- -- -- --
20 A1002-HB20 19.00 21.00
针座 WAFER
材料 Material: LCP UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A1002-SVB02 1.00 4.00
3 A1002-SVB03 2.00 5.00
4 A1002-SVB04 3.00 6.00
4.35 5 A1002-SVB05 4.00 7.00
6 A1002-SVB06 5.00 8.00
7 A1002-SVB07 6.00 9.00
1 0.2
A 8 A1002-SVB08 7.00 10.00
B 3 9 A1002-SVB09 8.00 11.00
10 A1002-SVB10 9.00 12.00
11 A1002-SVB11 10.00 13.00
12 A1002-SVB12 11.00 14.00
13 A1002-SVB13 12.00 15.00
2.9
14 A1002-SVB14 13.00 16.00
15 A1002-SVB15 14.00 17.00
-- -- -- -- --
20 A1002-SVB20 19.00 22.00
