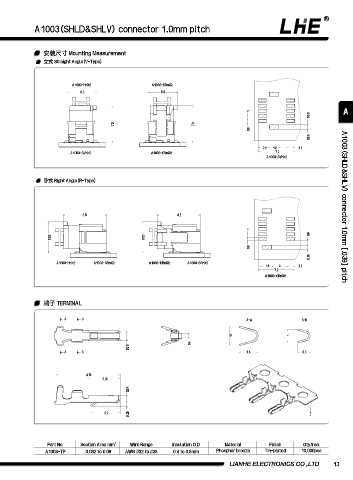

A1003(SHLD&SHLV) connector 1.0mm pitch

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type)

A1003-HnX2 A1003-HBnX2
5.8 5.8

1 A
0.53
7.3 7.3
0.6
0.85

2.2 1.8 1.6
A1003-SVnX2 A1003-SVnX2 7.2
A1003-SVnX2

卧式 Right Angle(R-Type)

8.5 8.5 A1003(SHLD&SHLV) connector 1.0mm [.039] pitch

1
0.9
6.25 6.25
0.6
0.85
A1003-HnX2 A1003-SRnX2 A1003-HBnX2 A1003-SRnX2
1.8 3 1.6
7.2
A1003-SRnX2

端⼦ TERMINAL

A B A-A B-B

1.4 1
0.4
0.76
A B 1.4 0.9

4.75
2.35
0.54

0.25
2.2

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A1003-TP 0.032 to 0.08 AWG #32 to #28 0.4 to 0.8mm Phosphor bronze Tin-plated 10,000pcs
