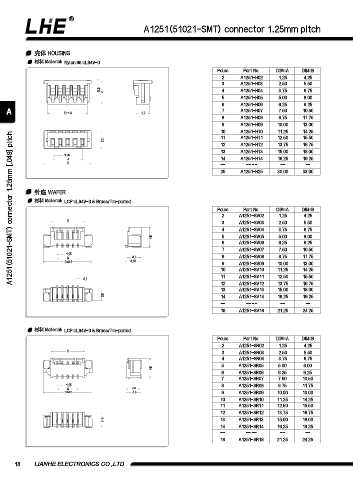

A1251(51021-SMT) connector 1.25mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A1251-H02 1.25 4.25
3 A1251-H03 2.50 5.50
0.5 4 A1251-H04 3.75 6.75
4
5 A1251-H05 5.00 8.00
6 A1251-H06 6.25 9.25
A B-1.3 2.3 7 A1251-H07 7.50 10.50
8 A1251-H08 8.75 11.75
9 A1251-H09 10.00 13.00
10 A1251-H10 11.25 14.25
A1251(51021-SMT) connector 1.25mm [.049] pitch
3.1 11 A1251-H11 12.50 15.50
12 A1251-H12 13.75 16.75
13 A1251-H13 15.00 18.00
1.25
A 14 A1251-H14 16.25 19.25
B -- -- -- -- --
25 A1251-H25 30.00 33.00

针座 WAFER
材料 Material: LCP UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A1251-SV02 1.25 4.25
B
3 A1251-SV03 2.50 5.50
4 A1251-SV04 3.75 6.75
4.8 5 A1251-SV05 5.00 8.00
6 A1251-SV06 6.25 9.25
7 A1251-SV07 7.50 10.50
1.25
A 3.3 8 A1251-SV08 8.75 11.75
B+3.6 3.85 9 A1251-SV09 10.00 13.00
10 A1251-SV10 11.25 14.25
11 A1251-SV11 12.50 15.50
0.3
12 A1251-SV12 13.75 16.75
13 A1251-SV13 15.00 18.00
2.8 14 A1251-SV14 16.25 19.25
-- -- -- -- --
18 A1251-SV18 21.25 24.25

材料 Material: LCP UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A1251-SR02 1.25 4.25
B 3 A1251-SR03 2.50 5.50
4 A1251-SR04 3.75 6.75
5 A1251-SR05 5.00 8.00
4.8
6 A1251-SR06 6.25 9.25
7 A1251-SR07 7.50 10.50
1.25 8 A1251-SR08 8.75 11.75
A 3.3
B+3.6 3.6 9 A1251-SR09 10.00 13.00
10 A1251-SR10 11.25 14.25
11 A1251-SR11 12.50 15.50
12 A1251-SR12 13.75 16.75
3.6 13 A1251-SR13 15.00 18.00
14 A1251-SR14 16.25 19.25
-- -- -- -- --
18 A1251-SR18 21.25 24.25
