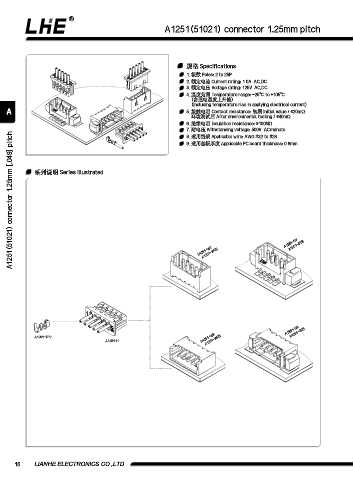

A1251(51021) connector 1.25mm pitch

规格 Specifications
1. 极数 Poles: 2 to 25P
2. 额定电流 Current rating: 1.0A AC,DC
3. 额定电压 Voltage rating: 125V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤40mΩ
6. 绝缘电阻 Insulation resistance: ≥100MΩ
7. 耐电压 Withstanding voltage: 500V AC/minute
A1251(51021) connector 1.25mm [.049] pitch
8. 适⽤线规 Applicable wire: AWG #32 to #28
9. 适⽤基板厚度 Applicable PC board thickness: 0.8mm

系列说明 Series illustrated

A1251-SV
A1251-SVB
A1251-WV
A1251-WVB

A1251-SR
A1251-SRB
A1251-TP2 A1251-WR
A1251-H A1251-WRB

16 LIANHE ELECTRONICS CO.,LTD.
