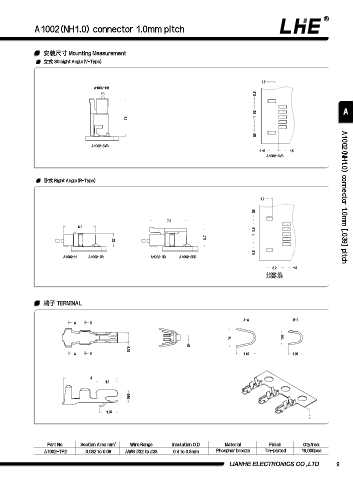

A1002(NH1.0) connector 1.0mm pitch

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type)

1.5
A1002-HB
0.6

0.5 A
7.4 1

0.6
A1002-SVB
2.15 1.5
A1002-SVB

卧式 Right Angle(R-Type)

1.2 A1002(NH1.0) connector 1.0mm [.039] pitch

0.6
7.3
6.3
0.5
1
3.7
2.7
0.6
A1002-H A1002-SR A1002-HB A1002-SRB
3.2 1.5
A1002-SR
A1002-SRB

端⼦ TERMINAL

A-A B-B
A B

1.4 1.05
0.4
0.78
A B 1.45 1.05

4
1.6

0.95

1.35

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A1002-TP2 0.032 to 0.08 AWG #32 to #28 0.4 to 0.8mm Phosphor bronze Tin-plated 16,000pcs

LIANHE ELECTRONICS CO.,LTD. 9
