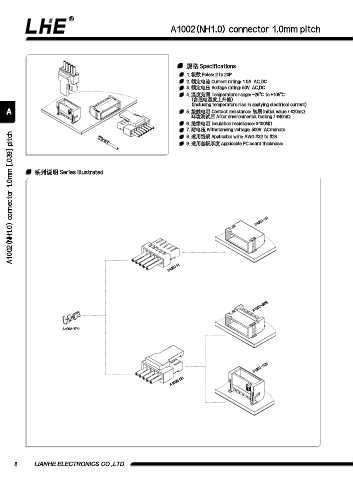

A1002(NH1.0) connector 1.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 20P
2. 额定电流 Current rating: 1.0A AC,DC
3. 额定电压 Voltage rating: 50V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤20mΩ
环境测试后 After environmental testing / ≤40mΩ
6. 绝缘电阻 Insulation resistance: ≥100MΩ
7. 耐电压 Withstanding voltage: 500V AC/minute
A1002(NH1.0) connector 1.0mm [.039] pitch
8. 适⽤线规 Applicable wire: AWG #32 to #28
9. 适⽤基板厚度 Applicable PC board thickness:

系列说明 Series illustrated

A1002-SR

A1002-H

A1002-SRB

A1002-TP2

A1002-SVB

A1002-HB

8 LIANHE ELECTRONICS CO.,LTD.
