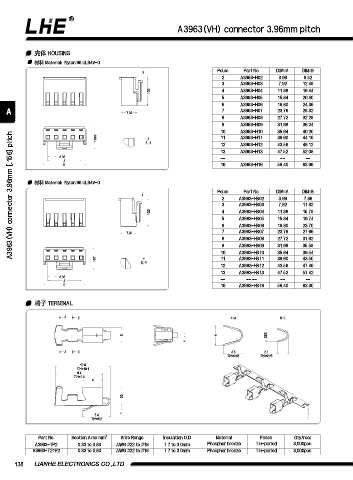

A3963(VH) connector 3.96mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
Z
2 A3963-H02 3.96 8.52
3 A3963-H03 7.92 12.48
13.5 4 A3963-H04 11.88 16.44
5 A3963-H05 15.84 20.40
6 A3963-H06 19.80 24.36
A 7.35 7 A3963-H07 23.76 28.32
8 A3963-H08 27.72 32.28
9 A3963-H09 31.68 36.24
10 A3963-H10 35.64 40.20
A3963(VH) connector 3.96mm [.156] pitch
10.85 Z 11 A3963-H11 39.60 44.16
5 : 1 12 A3963-H12 43.56 48.12
13 A3963-H13 47.52 52.08
3.96
A -- -- --
B 16 A3963-H16 59.40 63.96

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
Y
2 A3963-HB02 3.96 7.86
3 A3963-HB03 7.92 11.82
13.3 4 A3963-HB04 11.88 15.78
5 A3963-HB05 15.84 19.74
6 A3963-HB06 19.80 23.70
7 A3963-HB07 23.76 27.66
7.25
8 A3963-HB08 27.72 31.62
9 A3963-HB09 31.68 35.58
10 A3963-HB10 35.64 39.54
10.7 Y 11 A3963-HB11 39.60 43.50
5 : 1
12 A3963-HB12 43.56 47.46
13 A3963-HB13 47.52 51.42
3.96
A -- -- -- -- --
B 16 A3963-HB16 59.40 63.30

端⼦ TERMINAL

A B A-A B-B

3 4 2.65
1
A B 3.8 2.1
T21=3.95 T21=2.25
10.8
T21=10.1
9.4
T21=8.6
4

3.5

5.4 1
T21=5.2

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A3963-TP2 0.33 to 0.83 AWG #22 to #18 1.7 to 3.0mm Phosphor bronze Tin-plated 3,000pcs
A3963-T21P2 0.33 to 0.83 AWG #22 to #18 1.7 to 3.0mm Phosphor bronze Tin-plated 3,000pcs
