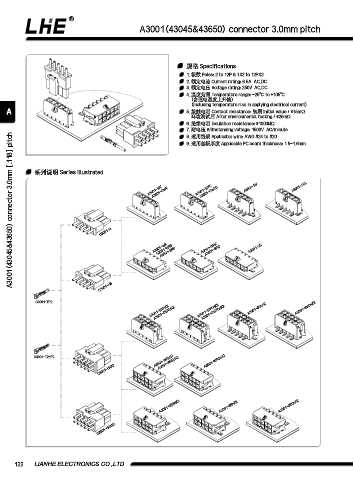

A3001(43045&43650) connector 3.0mm pitch

规格 Specifications
1. 极数 Poles: 2 to 12P & 1X2 to 12PX2
2. 额定电流 Current rating: 8.5A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
A 5. 接触电阻 Contact resistance: 初期 Initial value / ≤15mΩ
环境测试后 After environmental testing / ≤25mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
A3001(43045&43650) connector 3.0mm [.118] pitch
8. 适⽤线规 Applicable wire: AWG #24 to #20
9. 适⽤基板厚度 Applicable PC board thickness: 1.5~1.6mm

系列说明 Series illustrated

A3001-WV A3001-WVC A3001-SV A3001-SVC
A3001-DWVC
A3001-DWV

C3001-H

A3001-WR A3001-WRC A3001-SR
A3001-WRB
A3001-SRC
A3001-SRB

C3001-HB

C3001-TP2
A3001-WVnX2 A3001-WVCnX2 A3001-SVnX2 A3001-SVCnX2
A3001-DWVCnX2
A3001-DWVnX2

C3001-T21P2 A3001-WRnX2 A3001-WRCnX2
A3001-WRBnX2
C3001-HnX2

A3001-SRBnX2 A3001-SRnX2 A3001-SRCnX2

C3001-HBnX2
