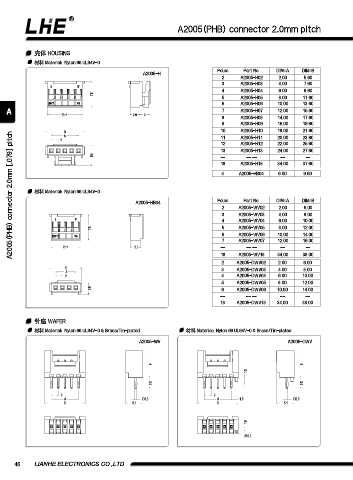

A2005(PHB) connector 2.0mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

A2005-H Poles Part No. DIM=A DIM=B
2 A2005-H02 2.00 5.60
3 A2005-H03 4.00 7.60
4 A2005-H04 6.00 9.60
7.8
5 A2005-H05 8.00 11.60
6 A2005-H06 10.00 13.60
A B-1 2.9 3 7 A2005-H07 12.00 15.60
8 A2005-H08 14.00 17.60
9 A2005-H09 16.00 19.60
B 10 A2005-H10 18.00 21.60
A2005(PHB) connector 2.0mm [.079] pitch
A
2 11 A2005-H11 20.00 23.60
12 A2005-H12 22.00 25.60
13 A2005-H13 24.00 27.60
6.4
-- -- -- -- --
18 A2005-H18 34.00 37.60
4 A2005-HB04 6.00 9.60

材料 Material: Nylon 66 UL94V-0
A2005-HB04 Poles Part No. DIM=A DIM=B
2 A2005-WV02 2.00 6.00
3 A2005-WV03 4.00 8.00
4 A2005-WV04 6.00 10.00
7.8 5 A2005-WV05 8.00 12.00
6 A2005-WV06 10.00 14.00
7 A2005-WV07 12.00 16.00
B-1 2.9 -- -- -- -- --
18 A2005-WV18 34.00 38.00
2 A2005-DWV02 2.00 6.00
B 3 A2005-DWV03 4.00 8.00
A
2 4 A2005-DWV04 6.00 10.00
5 A2005-DWV05 8.00 12.00
3.6 6 A2005-DWV06 10.00 14.00
-- -- -- -- --
18 A2005-DWV18 34.00 38.00

针座 WAFER
材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated 材料 Material: Nylon 66 UL94V-0 & Brass/Tin-plated
A2005-WV A2005-DWV

8 8
1.2
3.2 3.2

2 2
A  0.5 A 1.5  0.5
B 5.1 B 5.1

1.5

0.8

46 LIANHE ELECTRONICS CO.,LTD.
