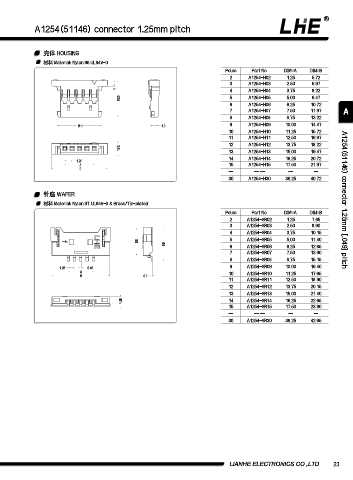

A1254(51146) connector 1.25mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 A1254-H02 1.25 5.72
3 A1254-H03 2.50 6.97
1
4 A1254-H04 3.75 8.22
6.25 5 A1254-H05 5.00 9.47
6 A1254-H06 6.25 10.72
7 A1254-H07 7.50 11.97 A
8 A1254-H08 8.75 13.22
B-2 1.3 9 A1254-H09 10.00 14.47
10 A1254-H10 11.25 15.72
11 A1254-H11 12.50 16.97
12 A1254-H12 13.75 18.22
1.82 13 A1254-H13 15.00 19.47
14 A1254-H14 16.25 20.72
1.25
A 15 A1254-H15 17.50 21.97
B
-- -- -- -- --
30 A1254-H30 36.25 40.72
针座 WAFER
材料 Material: Nylon 9T UL94V-0 & Brass/Tin-plated A1254(51146) connector 1.25mm [.049] pitch
Poles Part No. DIM=A DIM=B
2 A1254-SR02 1.25 7.65
3 A1254-SR03 2.50 8.90
4 A1254-SR04 3.75 10.15
5 A1254-SR05 5.00 11.40
5.5
6.6 6 A1254-SR06 6.25 12.65
7 A1254-SR07 7.50 13.90
8 A1254-SR08 8.75 15.15
9 A1254-SR09 10.00 16.40
1.25 0.45
A 10 A1254-SR10 11.25 17.65
B 0.3
11 A1254-SR11 12.50 18.90
12 A1254-SR12 13.75 20.15
13 A1254-SR13 15.00 21.40
1.85 14 A1254-SR14 16.25 22.65
15 A1254-SR15 17.50 23.90
-- -- -- -- --
30 A1254-SR30 36.25 42.65
