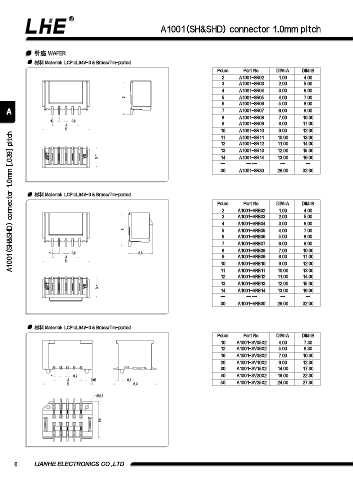

A1001(SH&SHD) connector 1.0mm pitch

针座 WAFER
材料 Material: LCP UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A1001-SR02 1.00 4.00
3 A1001-SR03 2.00 5.00
4 A1001-SR04 3.00 6.00
5 5 A1001-SR05 4.00 7.00
6 A1001-SR06 5.00 8.00
A 7 A1001-SR07 6.00 9.00
8 A1001-SR08 7.00 10.00
1 0.2
A 9 A1001-SR09 8.00 11.00
B
10 A1001-SR10 9.00 12.00
A1001(SH&SHD) connector 1.0mm [.039] pitch
11 A1001-SR11 10.00 13.00
12 A1001-SR12 11.00 14.00
13 A1001-SR13 12.00 15.00
3.1 14 A1001-SR14 13.00 16.00
-- -- -- -- --
30 A1001-SR30 29.00 32.00

材料 Material: LCP UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A1001-SRB02 1.00 4.00
3 A1001-SRB03 2.00 5.00
4 A1001-SRB04 3.00 6.00
5 5 A1001-SRB05 4.00 7.00
6 A1001-SRB06 5.00 8.00
7 A1001-SRB07 6.00 9.00
8 A1001-SRB08 7.00 10.00
1 0.2 3.6
A 9 A1001-SRB09 8.00 11.00
B
10 A1001-SRB10 9.00 12.00
11 A1001-SRB11 10.00 13.00
12 A1001-SRB12 11.00 14.00
13 A1001-SRB13 12.00 15.00
3.1 14 A1001-SRB14 13.00 16.00
-- -- -- -- --
30 A1001-SRB30 29.00 32.00

材料 Material: LCP UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
10 A1001-SV05X2 4.00 7.30
12 A1001-SV06X2 5.00 8.30
16 A1001-SV08X2 7.00 10.30
20 A1001-SV10X2 9.00 12.30
30 A1001-SV15X2 14.00 17.30
1 0.2 40 A1001-SV20X2 19.00 22.30
A 0.85 0.6
B 6.3 50 A1001-SV25X2 24.00 27.30
0.5

5.4
