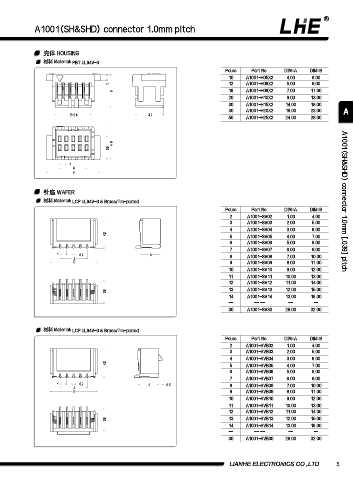

A1001(SH&SHD) connector 1.0mm pitch

壳体 HOUSING
材料 Material: PBT UL94V-0
Poles Part No. DIM=A DIM=B
10 A1001-H05X2 4.00 8.00
1 12 A1001-H06X2 5.00 9.00
5 16 A1001-H08X2 7.00 11.00
20 A1001-H10X2 9.00 13.00
30 A1001-H15X2 14.00 18.00
40 A1001-H20X2 19.00 23.00 A
B-2.6 4.2
50 A1001-H25X2 24.00 28.00

4.9
3.6

1
A
B

针座 WAFER
材料 Material: LCP UL94V-0 & Brass/Tin-plated A1001(SH&SHD) connector 1.0mm [.039] pitch
Poles Part No. DIM=A DIM=B
2 A1001-SV02 1.00 4.00
3 A1001-SV03 2.00 5.00
4 A1001-SV04 3.00 6.00
4.3
5 A1001-SV05 4.00 7.00
6 A1001-SV06 5.00 8.00
7 A1001-SV07 6.00 9.00
1 0.2 3 8 A1001-SV08 7.00 10.00
A
B 9 A1001-SV09 8.00 11.00
10 A1001-SV10 9.00 12.00
11 A1001-SV11 10.00 13.00
12 A1001-SV12 11.00 14.00
13 A1001-SV13 12.00 15.00
3.6
14 A1001-SV14 13.00 16.00
-- -- -- -- --
30 A1001-SV30 29.00 32.00

材料 Material: LCP UL94V-0 & Brass/Tin-plated
Poles Part No. DIM=A DIM=B
2 A1001-SVB02 1.00 4.00
3 A1001-SVB03 2.00 5.00
4 A1001-SVB04 3.00 6.00
4.3
5 A1001-SVB05 4.00 7.00
6 A1001-SVB06 5.00 8.00
7 A1001-SVB07 6.00 9.00
1 0.2 3 0.5 8 A1001-SVB08 7.00 10.00
A
B 9 A1001-SVB09 8.00 11.00
10 A1001-SVB10 9.00 12.00
11 A1001-SVB11 10.00 13.00
12 A1001-SVB12 11.00 14.00
3.6 13 A1001-SVB13 12.00 15.00
14 A1001-SVB14 13.00 16.00
-- -- -- -- --
30 A1001-SVB30 29.00 32.00

LIANHE ELECTRONICS CO.,LTD. 5
