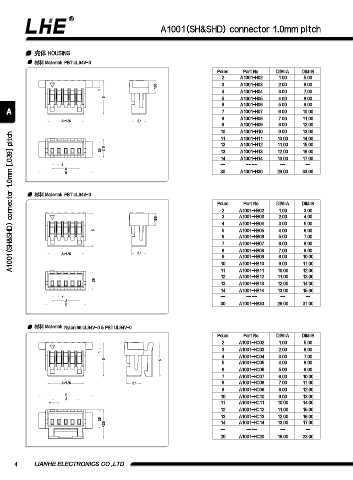

A1001(SH&SHD) connector 1.0mm pitch

壳体 HOUSING
材料 Material: PBT UL94V-0
Poles Part No. DIM=A DIM=B
2 A1001-H02 1.00 5.00
3 A1001-H03 2.00 6.00
1.85
1 4 A1001-H04 3.00 7.00
5 A1001-H05 4.00 8.00
5
6 A1001-H06 5.00 9.00
A 7 A1001-H07 6.00 10.00
8 A1001-H08 7.00 11.00
A+1.36 2.1
9 A1001-H09 8.00 12.00
10 A1001-H10 9.00 13.00
A1001(SH&SHD) connector 1.0mm [.039] pitch
11 A1001-H11 10.00 14.00
12 A1001-H12 11.00 15.00
2.4 2.8 13 A1001-H13 12.00 16.00
14 A1001-H14 13.00 17.00
1 -- -- -- -- --
A
B 30 A1001-H30 29.00 33.00

材料 Material: PBT UL94V-0
Poles Part No. DIM=A DIM=B
2 A1001-HB02 1.00 3.00
3 A1001-HB03 2.00 4.00
1.85
4 A1001-HB04 3.00 5.00
5 A1001-HB05 4.00 6.00
5
6 A1001-HB06 5.00 7.00
7 A1001-HB07 6.00 8.00
8 A1001-HB08 7.00 9.00
A+1.36 2.1
9 A1001-HB09 8.00 10.00
10 A1001-HB10 9.00 11.00
11 A1001-HB11 10.00 12.00
12 A1001-HB12 11.00 13.00
2.8
13 A1001-HB13 12.00 14.00
14 A1001-HB14 13.00 15.00
1 -- -- -- -- --
A
B 30 A1001-HB30 29.00 31.00

材料 Material: Nylon 66 UL94V-0 & PBT UL94V-0
Poles Part No. DIM=A DIM=B
2 A1001-HC02 1.00 5.00
3 A1001-HC03 2.00 6.00
1
4 A1001-HC04 3.00 7.00
5 5
5 A1001-HC05 4.00 8.00
6 A1001-HC06 5.00 9.00
7 A1001-HC07 6.00 10.00
A+1.36 2.1 8 A1001-HC08 7.00 11.00
9 A1001-HC09 8.00 12.00
B 10 A1001-HC10 9.00 13.00
A
1 11 A1001-HC11 10.00 14.00
12 A1001-HC12 11.00 15.00
13 A1001-HC13 12.00 16.00
2.8
4.25 14 A1001-HC14 13.00 17.00
-- -- -- -- --
20 A1001-HC20 19.00 23.00
