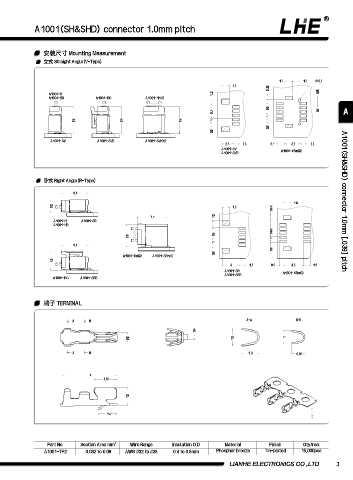

A1001(SH&SHD) connector 1.0mm pitch

安装尺⼨ Mounting Measurement
⽴式 Straight Angle(V-Type)

1.8 1.6 0.6
1.8
0.85
A1001-H 1.2 0.55
A1001-HB A1001-HC A1001-HnX2
0.6
0.4 0.6 A
1
6.4 6.4 6.4 1
0.6
0.6
A1001-SV A1001-SVB A1001-SVnX2
2.6 1.6 2.1 3.5 1.6
A1001-SV A1001-SVnX2
A1001-SVB

卧式 Right Angle(R-Type)
6.4
1.8 A1001(SH&SHD) connector 1.0mm [.039] pitch
3.2 1.8 0.85
1.2
7.1
A1001-H A1001-SR
A1001-HB
0.95
0.4
5.6
1
1
6.4
0.6
0.6
A1001-HnX2 A1001-SRnX2
4.5
4 1.6 0.9 4.8 1.6
A1001-SR A1001-SRnX2
A1001-SRB
A1001-HC A1001-SRB
端⼦ TERMINAL

A B A-A B-B
0.4
0.8 1.3 1

A B 1.3 0.95

4
1.65

1.3

1.4

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
A1001-TP2 0.032 to 0.08 AWG #32 to #28 0.4 to 0.8mm Phosphor bronze Tin-plated 15,000pcs

LIANHE ELECTRONICS CO.,LTD. 3
