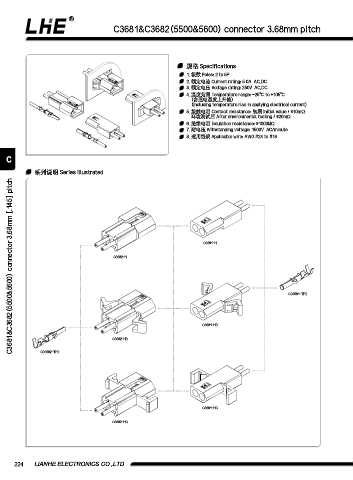

C3681&C3682(5500&5600) connector 3.68mm pitch

规格 Specifications
1. 极数 Poles: 2 to 5P
2. 额定电流 Current rating: 5.0A AC,DC
3. 额定电压 Voltage rating: 250V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤10mΩ
环境测试后 After environmental testing / ≤20mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适⽤线规 Applicable wire: AWG #24 to #18

C

系列说明 Series illustrated
C3681&C3682(5500&5600) connector 3.68mm [.145] pitch

C3681-H

C3682-H

C01581-TP2

C3681-HB

C3682-HB

C01582-TP2

C3681-HC

C3682-HC
