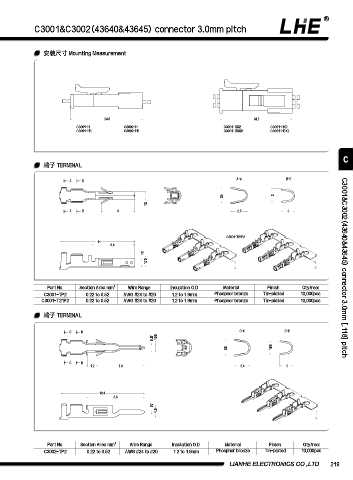

C3001&C3002(43640&43645) connector 3.0mm pitch

安装尺⼨ Mounting Measurement

24.5 24.5
C3001-H C3002-H C3001-HX2 C3001-HX2
C3001-HB C3002-HB C3001-HBX2 C3001-HBX2

C
端⼦ TERMINAL

A-A B-B
A B

2.4 2
1.2
A B 5 2.5 2

C3001-T21P2
11
6.4
1.3
1.75 C3001&C3002(43640&43645) connector 3.0mm [.118] pitch

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C3001-TP2 0.22 to 0.52 AWG #24 to #20 1.2 to 1.9mm Phosphor bronze Tin-plated 10,000pcs
C3001-T21P2 0.22 to 0.52 AWG #24 to #20 1.2 to 1.9mm Phosphor bronze Tin-plated 10,000pcs

端⼦ TERMINAL

C D C-C D-D
0.67 1.38
2.5 1.95

C D
1.2 7.3 2.4 2

12.4
8.6
0.7
1.9

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C3002-TP2 0.22 to 0.52 AWG #24 to #20 1.2 to 1.9mm Phosphor bronze Tin-plated 10,000pcs

LIANHE ELECTRONICS CO.,LTD. 219
