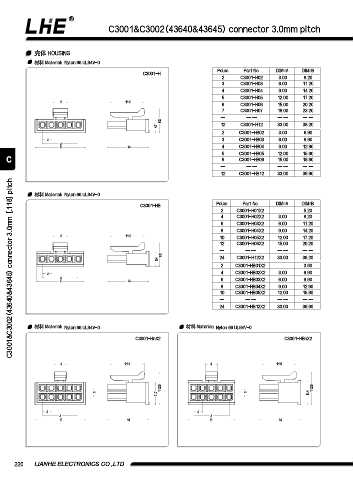

C3001&C3002(43640&43645) connector 3.0mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

C3001-H Poles Part No. DIM=A DIM=B
2 C3001-H02 3.00 8.20
3 C3001-H03 6.00 11.20
4 C3001-H04 9.00 14.20
5 C3001-H05 12.00 17.20
5 11.5
6 C3001-H06 15.00 20.20
7 C3001-H07 18.00 23.20
-- -- -- -- -- -- --
8.2
4.7 12 C3001-H12 33.00 38.20
2 C3001-HB02 3.00 6.90
3 3 C3001-HB03 6.00 9.90
A
B 14 4 C3001-HB04 9.00 12.90
5 C3001-HB05 12.00 15.90
C 6 C3001-HB06 15.00 18.90
-- -- -- -- -- -- --
12 C3001-HB12 33.00 36.90
C3001&C3002(43640&43645) connector 3.0mm [.118] pitch
材料 Material: Nylon 66 UL94V-0

C3001-HB Poles Part No. DIM=A DIM=B
2 C3001-H01X2 5.20
4 C3001-H02X2 3.00 8.20
6 C3001-H03X2 6.00 11.20
8 C3001-H04X2 9.00 14.20
5 11.5 10 C3001-H05X2 12.00 17.20
12 C3001-H06X2 15.00 20.20
-- -- -- -- -- -- --
8.2 24 C3001-H12X2 33.00 38.20
5.4
2 C3001-HB01X2 3.90
4 C3001-HB02X2 3.00 6.90
3
A 6 C3001-HB03X2 6.00 9.90
B 14
8 C3001-HB04X2 9.00 12.90
10 C3001-HB05X2 12.00 15.90
-- -- -- -- -- -- --
24 C3001-HB12X2 33.00 36.90

材料 Material: Nylon 66 UL94V-0 材料 Material: Nylon 66 UL94V-0
C3001-HnX2 C3001-HBnX2

4 11.5 4 11.5

11.25 11.25
7.7
3 3 8.4

3 3
A A
B 14 B 14

220 LIANHE ELECTRONICS CO.,LTD.
