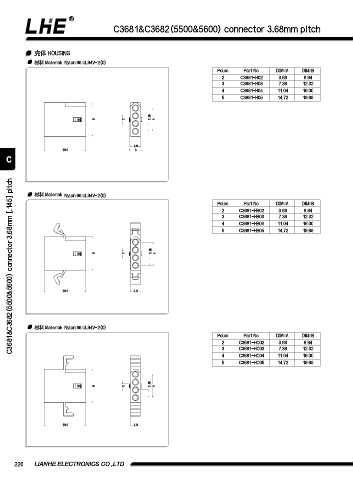

C3681&C3682(5500&5600) connector 3.68mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-2(0)
Poles Part No. DIM=A DIM=B
2 C3681-H02 3.68 8.64
3 C3681-H03 7.36 12.32
4 C3681-H04 11.04 16.00
5 C3681-H05 14.72 19.68

3.68
B 2 A

4.9
19.8 6
C

C3681&C3682(5500&5600) connector 3.68mm [.145] pitch
材料 Material: Nylon 66 UL94V-2(0)
Poles Part No. DIM=A DIM=B
2 C3681-HB02 3.68 8.64
3 C3681-HB03 7.36 12.32
4 C3681-HB04 11.04 16.00
5 C3681-HB05 14.72 19.68

3.68
B 2 A

19.8 4.9

材料 Material: Nylon 66 UL94V-2(0)
Poles Part No. DIM=A DIM=B
2 C3681-HC02 3.68 8.64
3 C3681-HC03 7.36 12.32
4 C3681-HC04 11.04 16.00
5 C3681-HC05 14.72 19.68

3.68
B 2 A

19.8 4.9

226 LIANHE ELECTRONICS CO.,LTD.
