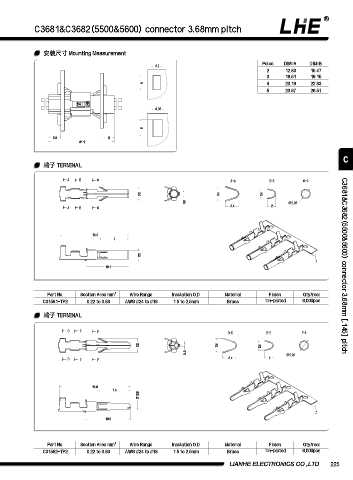

C3681&C3682(5500&5600) connector 3.68mm pitch

安装尺⼨ Mounting Measurement
Poles DIM=A DIM=B
6.7
2 12.83 15.47
3 16.51 19.15
A 4 20.19 22.83
5 23.87 26.51

8.05

B
5.8 5
31.1

C
端⼦ TERMINAL

A B C A-A B-B C-C
3.2 3.4 2.4
0.6 2.25
A B C 3.4 2

16.3
7

2
Ø
10.1 C3681&C3682(5500&5600) connector 3.68mm [.145] pitch

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C01581-TP2 0.22 to 0.83 AWG #24 to #18 1.5 to 2.5mm Brass Tin-plated 6,000pcs

端⼦ TERMINAL

D E F
D-D E-E F-F
3.2 3.4 2.4
0.6 2.25
3.4 2
D E F

16.8
7.6
1.58
Ø

10.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C01582-TP2 0.22 to 0.83 AWG #24 to #18 1.5 to 2.5mm Brass Tin-plated 6,000pcs

LIANHE ELECTRONICS CO.,LTD. 225
