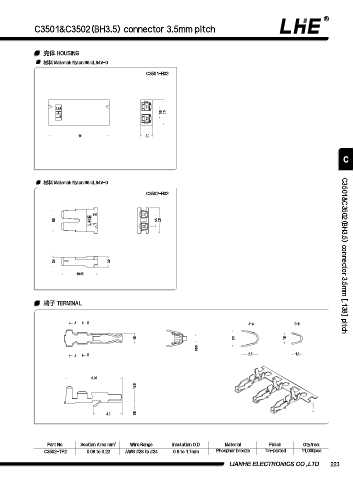

C3501&C3502(BH3.5) connector 3.5mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0

C3501-H02

3.5 7.5

18 3.7

C

材料 Material: Nylon 66 UL94V-0
C3502-H02

6.8 3.5 7.6

2.4 3.2 C3501&C3502(BH3.5) connector 3.5mm [.138] pitch

10.65

端⼦ TERMINAL

A B A-A B-B

1.5 2.3 1.6
0.65
A B 2.5 1.6

8.35
1.45

4.3 0.6

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C3502-TP2 0.08 to 0.22 AWG #28 to #24 0.9 to 1.7mm Phosphor bronze Tin-plated 11,000pcs
