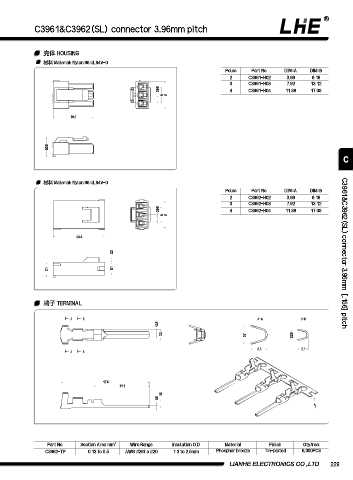

C3961&C3962(SL) connector 3.96mm pitch

壳体 HOUSING
材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C3961-H02 3.96 9.16
3 C3961-H03 7.92 13.12
3.96 4 C3961-H04 11.88 17.08
A B

19.2

9.35

C

材料 Material: Nylon 66 UL94V-0
Poles Part No. DIM=A DIM=B
2 C3962-H02 3.96 9.16
3 C3962-H03 7.92 13.12
3.96 4 C3962-H04 11.88 17.08
A B

24.4

2.3 C3961&C3962(SL) connector 3.96mm [.156] pitch

7.1 6.1

端⼦ TERMINAL

A B A-A B-B
1.35
2.2 3.7 2.25

3.3 2.1
A B

17.6
11.1
1.6
0.5

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C3962-TP 0.13 to 0.5 AWG #26t o #20 1.3 to 2.5mm Phosphor bronze Tin-plated 6,000PCS

LIANHE ELECTRONICS CO.,LTD. 229
