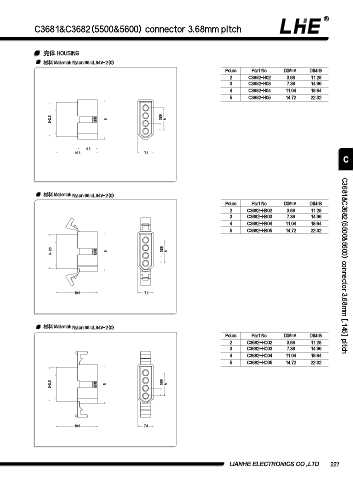

C3681&C3682(5500&5600) connector 3.68mm pitch
壳体 HOUSING
材料 Material: Nylon 66 UL94V-2(0)
Poles Part No. DIM=A DIM=B
2 C3682-H02 3.68 11.28
3 C3682-H03 7.36 14.96
4 C3682-H04 11.04 18.64
5 C3682-H05 14.72 22.32
B-2.3 B 3.68 A
9.5
19.8 7.3
C
材料 Material: Nylon 66 UL94V-2(0)
Poles Part No. DIM=A DIM=B
2 C3682-HB02 3.68 11.28
3 C3682-HB03 7.36 14.96
4 C3682-HB04 11.04 18.64
5 C3682-HB05 14.72 22.32
B-2.3 B 3.68 A C3681&C3682(5500&5600) connector 3.68mm [.145] pitch
19.8 7.3
材料 Material: Nylon 66 UL94V-2(0)
Poles Part No. DIM=A DIM=B
2 C3682-HC02 3.68 11.28
3 C3682-HC03 7.36 14.96
4 C3682-HC04 11.04 18.64
5 C3682-HC05 14.72 22.32
B-2.3 B 3.68 A
19.8 7.3
