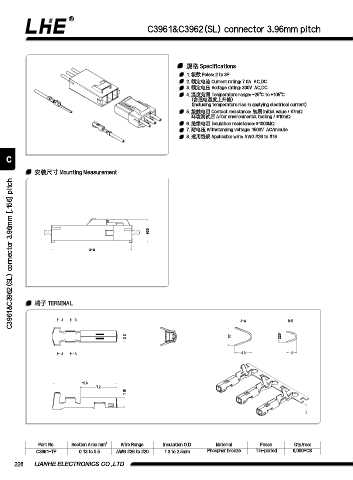

C3961&C3962(SL) connector 3.96mm pitch

规格 Specifications
1. 极数 Poles: 2 to 3P
2. 额定电流 Current rating: 7.0A AC,DC
3. 额定电压 Voltage rating: 300V AC,DC
4. 温度范围 Temperature range: -25℃ to +105℃
(含通电温度上升值)
(Including temperature rise in applying electrical current)
5. 接触电阻 Contact resistance: 初期 Initial value / ≤7mΩ
环境测试后 After environmental testing / ≤10mΩ
6. 绝缘电阻 Insulation resistance: ≥1000MΩ
7. 耐电压 Withstanding voltage: 1500V AC/minute
8. 适⽤线规 Applicable wire: AWG #26 to #18

C

安装尺⼨ Mounting Measurement
C3961&C3962(SL) connector 3.96mm [.156] pitch

9.35

31.8

端⼦ TERMINAL

A B A-A B-B

2.2 3.7 2.25

A B 3.3 2

12.6
7.2
1.93

Part No. Section Area mm² Wire Range Insulation O.D Material Finish Qty/reel
C3961-TP 0.13 to 0.5 AWG #26 to #20 1.3 to 2.5mm Phosphor bronze Tin-plated 6,000PCS
